Discontinued

Steelmate PTS410M21-F SHINY front parking assistant

| PTS410M21-F SHINY

Front parking assistant Steelmate with 4 shiny black sensors and ultra slim LED display M21 two-colour diodes, includes new control unit that allows you to adjust the sensitivity in 2 levels, and to adjust the delay off time. The system is designed for installation in the front bumper of the vehicle.


Discontinued

Parking assist system is an ultrasonic distance monitoring system. It electronically detects the area in front of your vehicle while parking, and alerts you if the system detects an obstacle. The system will show the accurate distance in meters. This product is 4-sensor systems for front bumper protection. They can also work as 2-sensor systems. They are ideal for cars with front metal bar.

System Description:

  • sensors with fixed installation in the front bumper
  • fast detection of obstacles
  • acoustic (changing frequency beeping) and visual notification of the obstacle position
  • if the obstacle is at a distance of 30 cm from the vehicle, it signalling by a continuous tone

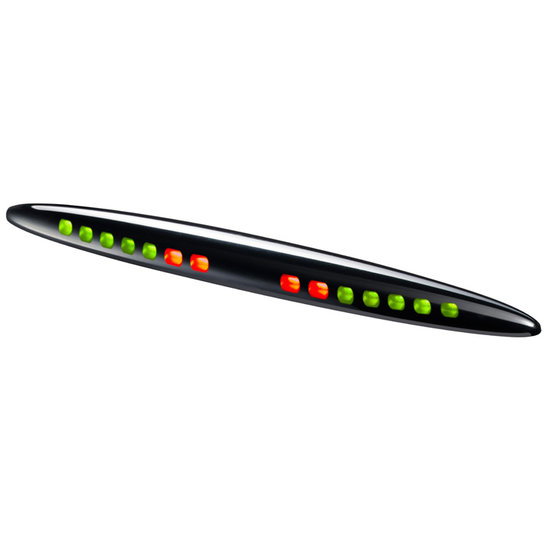

  • 2 colour M21 display with digits
  • control unit with switches to set the sensitivity and delay time off
    • 2 sensitivity levels (high and low)
    • delay time for 8s or 20s after releasing the brake pedal
  • self test function
  • cable length to the sensor 4.5 m
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers in the package 0°, 4°, 10°
  • sensors core diameter 14 mm
  • sensors diameter 18.5 mm
  • sensors with 10 cm cable with waterproof connector which ensures easy replacement of the sensor, if necessary

Contents:

  • parking sensors 4 pieces
  • angle washers
  • control unit
  • display
  • buzzer
  • cabling
  • drill
  • instruction
  • warranty card

Parameters

Manufacturer Steelmate
Sensor type Basic
Display LED display
Sensors colour black shiny
Power Suply 12VDC
