Steelmate PTS810M7M8 OEM SILVER parking assistant

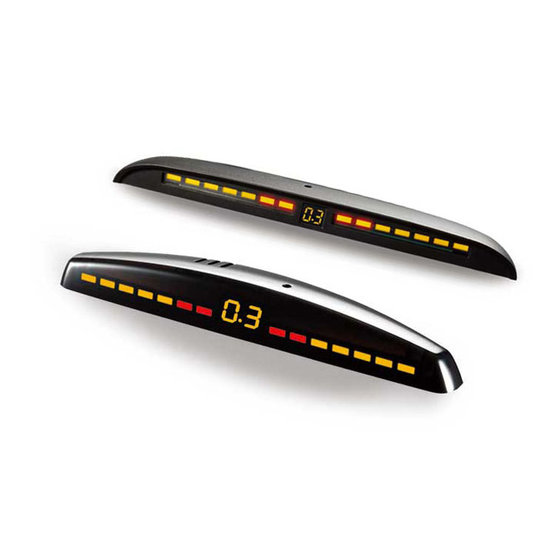

Parking assistant Steelmate with new control units, includes 8x adjustable 16mm flush silver sensors, LED diplays M7 and M8 with adjustable volume. Designed for installation in the front and rear bumper of the vehicle. The system is supplied with automatic identification of the defective sensor, sensitivity setting and front sensors off delay.

System Description:
•    sensors with fixed assembly to the bumper
•    fast obstacle detection
•    visual and acoustic signalisation (beeps changing frequency) indicates the position of obstacles
•    excellent coverage of the entire area behind the vehicle
•    when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
•    auto detection (automatic identification of the defective sensor)
•    excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
•    mounting hole 16 mm
•    sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if        necessary
•    adjustable sensitivity of the sensors on the control unit (2 levels)
•    the unique learning function (ignoring permanent obstacle - tow bar, spare wheel, frame, ...)
•    with additional ACC wire (pink wire) for stable power supply(optional connection)

Technical parameters:
•    Supply voltage: 12V DC
•    Working power: <2.5 W
•    Detection range: 0.1 ~ 2.5 m
•    Operating temperature: -40°C to + 80°C
•    Buzzer: 70 ~ 90 db
•    Sensor diameter 18,5mm
•    Sensor wire length 2,2m

Note: The control unit contains a 3 PIN connector for displayconnection, display with old 8 PIN connector is not compatible!
