Steelmate PTS810M7M8 SHINY parking assistant

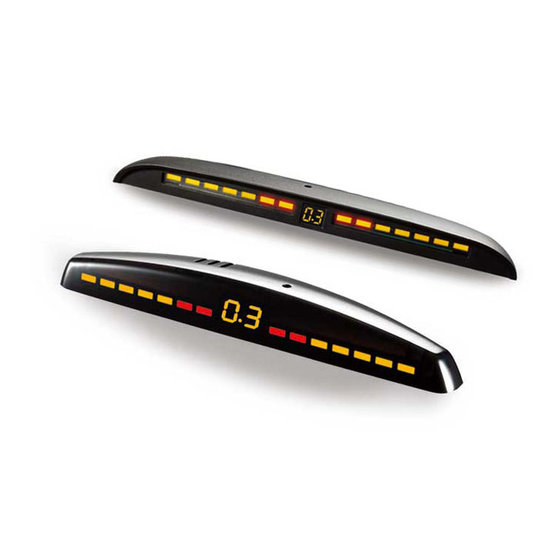

Front and rear Park Assist system STEELMATE with 8 black glossy sensors, 2 slim LED displays (M7 and M8) and automatic radio mute function. Dashboard/interior mirror/rear roof installation. New control units allow to set the sensitivity of sensors, and also to set off delay front sensors in the two levels.

Technical parameters:

• acoustic and visual signalisation (LED diodes + number)
• sensors are mounted in the front and back bumper
• when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
• sensors sensitivity adjustable
• off delay of the front sensors after releasing the brake pedal (8s or 20s)
• excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
• angle washers  0°, 4°, 10° included in the package
• sensors core diameter 14 mm
• mounting hole 18,8 mm
• sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
• function Antihook - measuring shift +20 cm (reserve, drawing, frame, ...)
• fast obstacle detection
• automatic detection of damaged sensor
• supply voltage: 12V DC
• working power: <2.5 W
• display range: 0,3 ~ 2,5 m
• display dimensions M7: 135x17x18 mm
• display dimensions M8: 150x15x20 mm
• sensor diameter 18,5mm
• display cables lenght:  6m

Package:

• 8pcs of parking sensor
• LED display M7 and M8
• control unit 2x
• wiring
• drill
• manual
• warranty card

Note: The control unit contains a 3 PIN connector to connect the display, old displays with 8 PIN connector is not compatible!
