Steelmate PTS810V10 WHITE parking assistant

| PTS810V10 WHITE

Parking assistant STEELMATE with 8 white sensors, with only one control unit, designed for installation in the front and rear bumper, with V10 LCD display for convenient visual indication of the distance from obstacles. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).

Show price

Steelmate PTS810V10 WHITE parking assistant

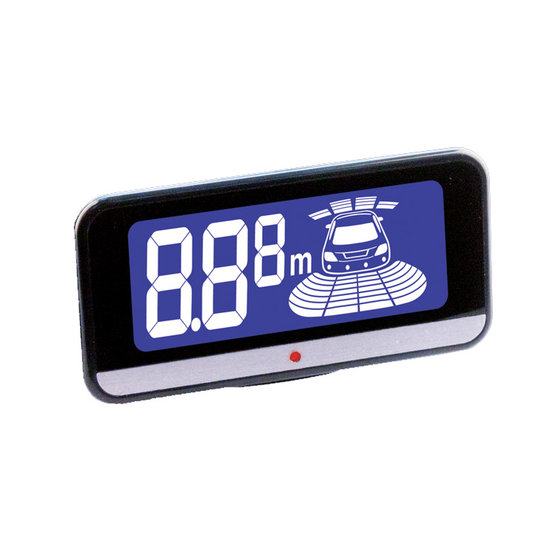

Parking assistant STEELMATE with 8 white sensors 18,5mm, with only one control unit, designed for installation in the front and rear bumper, with V10 LCD display for convenient visual indication of the distance from obstacles. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).
System Description:

acoustic, voice and visual alarm
sensors are mounted to the rear and front bumper
automatic detection of damage to sensors (selftest)
if the obstacle is at a distance of 30 cm from the vehicle, it will sound a continuous tone
Antihook function - scanning shift + 20 centimeters (spare wheel, frame ...)
sensitivity setting, in 2 levels
excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
sensor core diameter 14 mm
installation hole 18,5 mm
sensors with 10 cm cable with waterproof connector which ensures easy replacement, if necessary
supply voltage: 12V DC
working power: <2.5W
cover range (front / rear): from 0.3 to 1 m / 0.3 to 1.5 meters

Contents:

parking sensors 8 pieces
display 1x
control unit 1x
cabling
instruction manual
warranty card

Note: The control unit contains a 3 pin connector for connecting the display, an old display with 8 pin connector is not compatible!

Parameters

Product type	Rear & Front sensors
Manufacturer	Steelmate
Display	LCD display
Sensors colour	white
Power Suply	12VDC
Sensor type	Basic
Weight	1.464 kg
