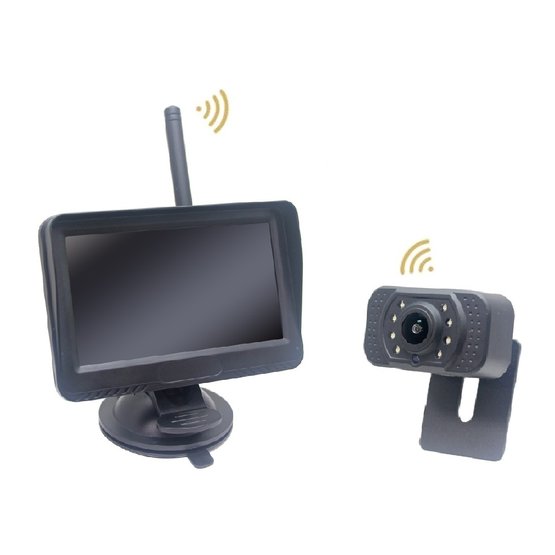

TFT4AW Wireless monitor 4.3" and IR camera 2.4GHz set
|
TFT4AW
Wireless 150° camera / 4.3" monitor set for vehicles 12/24V, (vans, solo trucks, motorhomes, etc.), camera with IR LEDs, user-friendly system, option to flip the display horizontally / vertically, function of to turn the guide lines on / off and to set Its shape, quick solution without complicated installation, for locating the camera in the exterior or interior of the vehicle (as a reversing, side or cargo compartment camera). The monitor supports one camera connection.

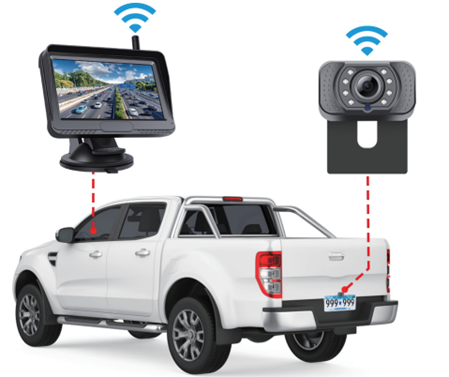

A user-friendly system designed to display the area behind the vehicle when reversing, or for continuous monitoring while driving (of a selected area near the vehicle / in the vehicle). The display can be placed on the windshield or on the dashboard using a suction cup.
Features
- for VANs, SUVs, motorhomes, short trucks
- time delay 120ms
- shock resistance min. 4G
- frequency range 2400 - 2483.5 MHz
- power supply range DC 9-32V
- working temperature from -20 to +80 °C
Monitor
- diagonal 4.3" 16:9
- backlight brightness 300 cd/㎡
- display resolution 640 x 480 RGB
- 1x AV wireless video input
- functions:
- on / off guide lines
- mirror / direct image display
- horizontal image flip
- vertical image flip
- width / length / angle settings of guide lines
- built-in switch on the CL power cable
- dimensions x x mm (without shield and stand)
Camera
- image sensor CMOS 1/3”
- HD resolution 960 x 576
- angle of view: 125° / 150° (H / D)
- water resistance IP68
- without microphone
- dimensions 89 x 37 x 45 mm (without holder)
- material aluminum alloy
Included
1x monitor with suction cup, 1x camera, 1x antenna, 1x cigarette power cable, 1x 2-wire power cable, 1x camera power cable, 1x double-sided 3M tape
Parameters
| Use | UNI |
|---|---|
| For cars | commercial, passenger |
| Diagonal | 4,3" |
| Signal | analog |
| Connectors | wireless |
| Weight | 9999 kg |
