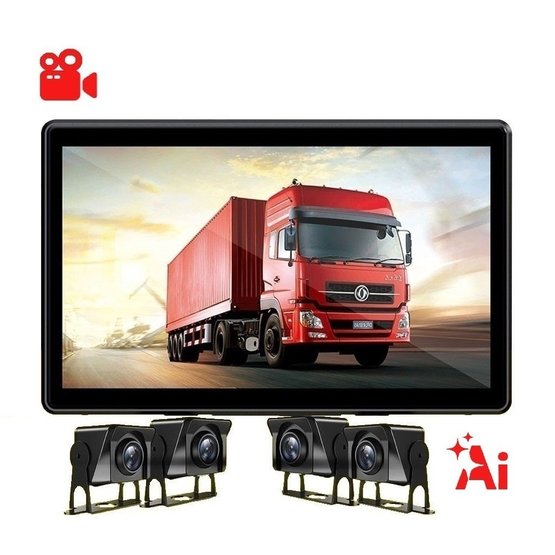

C40 Mobile CCTV, Ai BSD, 4ch AHD 720p recording, 10" touch screen

The system records automatically after turning the ignition on, while each channel (camera) is saved in a separate file. The cameras of small dimensions and thanks to the lens high aperture, It records a clear image in the dark even without IR leds. The system uses 720p AHD cameras, it is possible to add / use also other AHD cameras. When installing on a truck/trailer, it is necessary to insert also the M12 flexi cable. The main functions can also be controlled by voice (turn on, turn off the screen, switch camera view).

Note: the monitor supporting also automatic split display of two channels - CH3 and CH4 (by simultaneously connecting the trigger wires ch3 and ch4 to plus 12/24V).

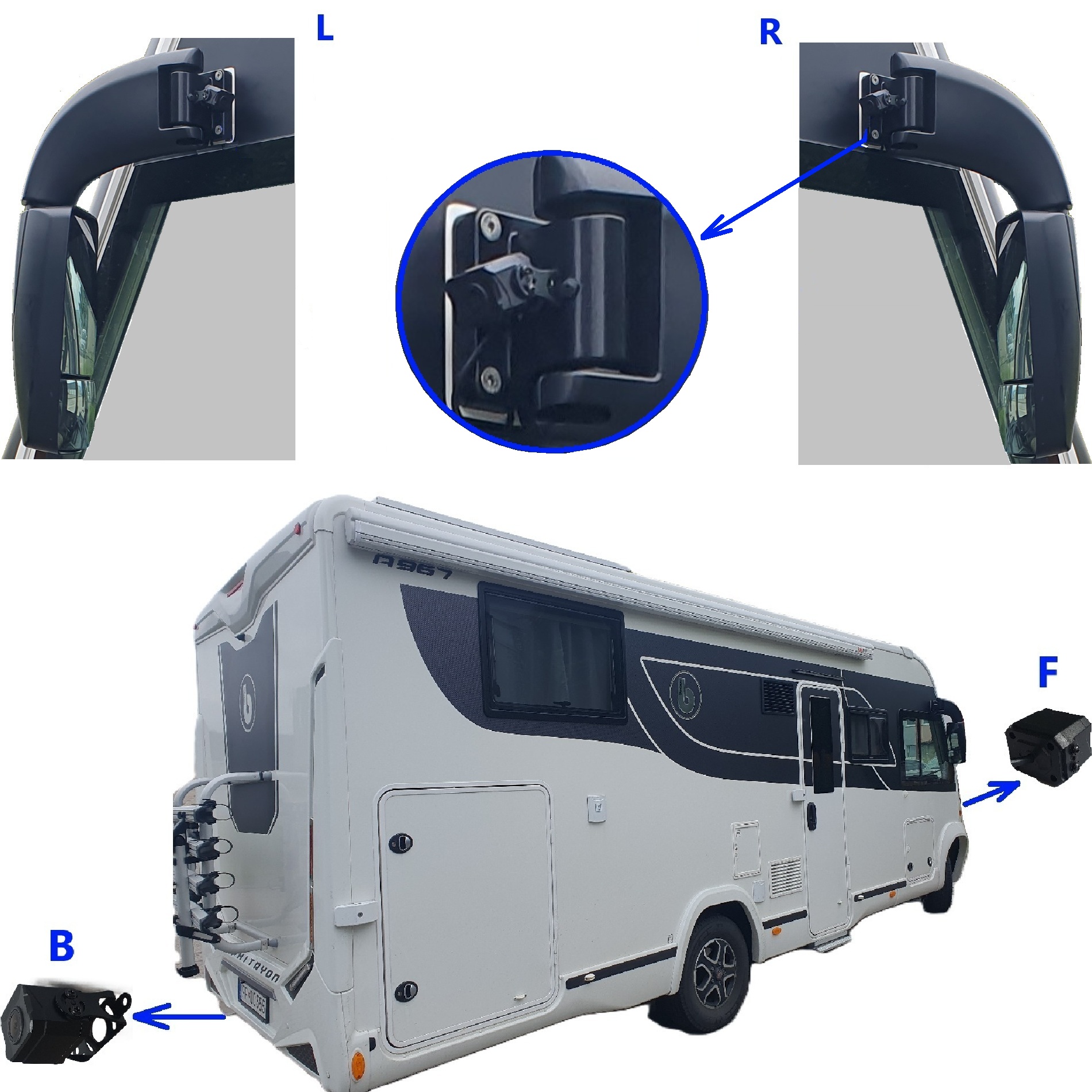

MOTORHOME INSTALLATION:

DETECTION ZONE CALIBRATION:

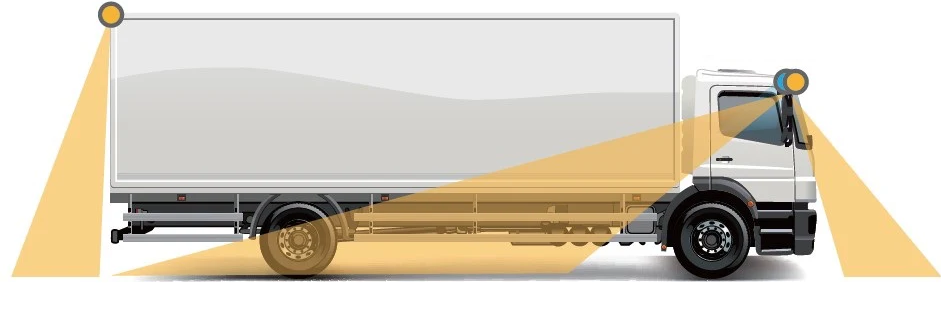

In OSD menu, move the four points to create the desired detection zone. Ai cameras are designed for side installation for blind spot detection. However, it is not a problem to create a rectangular zone and install the Ai camera in the front or rear, instead of side installation. The Ai detection sensitivity is adjustable in 3 levels.

Features

• monitor

  • display                            IPS touchscreen
  • diagonal                          10"
  • speaker                           yes, built-in
  • brightness                       3 levels
  • parking lines                    on / off
  • mirror image                    on / off
  • BSD monitoring                on / off
  • microphone                      yes, builtin

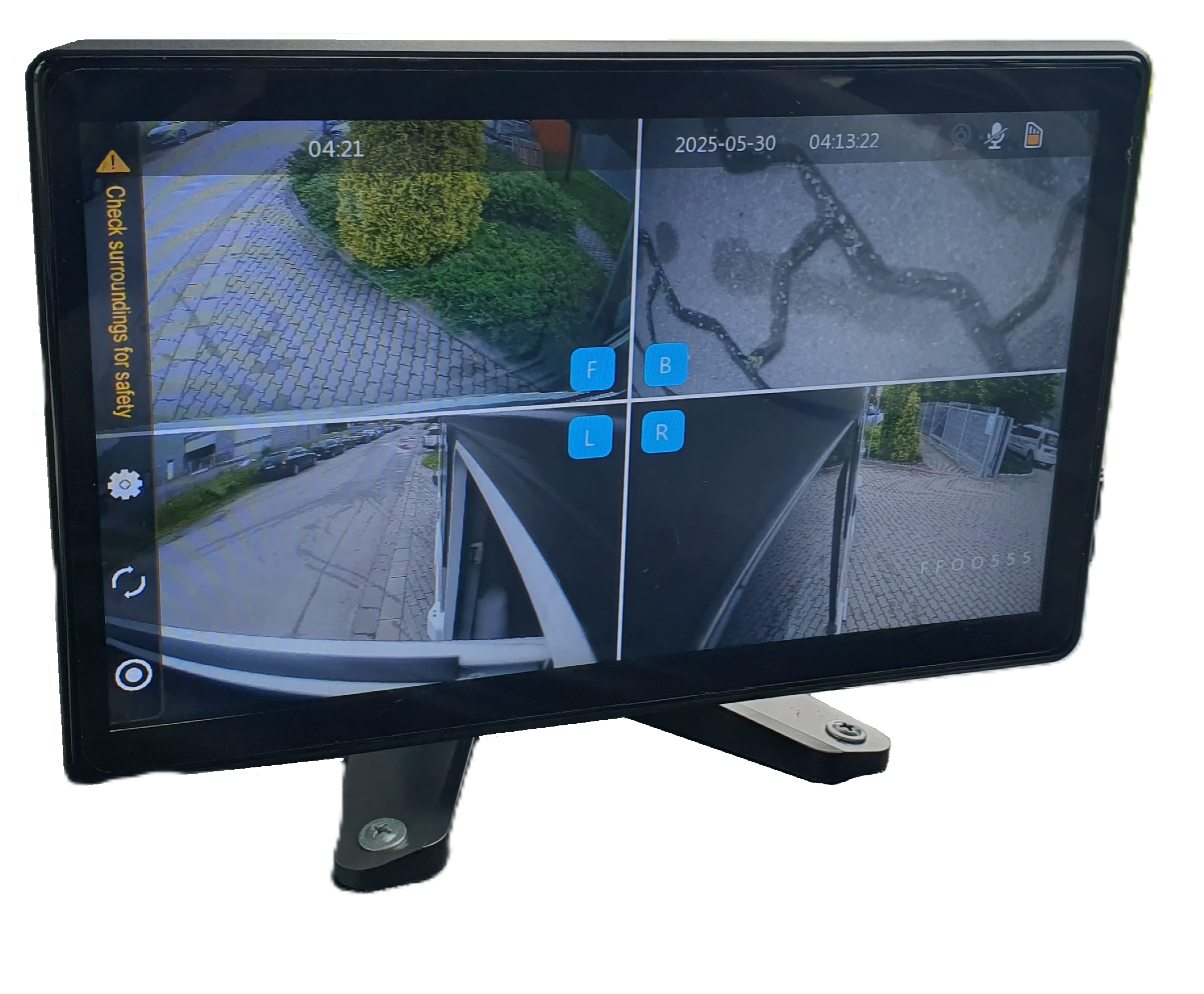

  • display                            1ch, 2ch split, 4ch split (manually with buttons or touch)
    • 2 split CH1 + CH2 (front + rear)
    • 2 split CH3 + CH4 (left + right)
  • lock the recorded file        yes by button
  • time/date/number plate    yes, reg.no. on / off
  • dimensions                      245 x 153 x 33mm without stand and shield
  • universal                        yes, other AHD cameras also supported

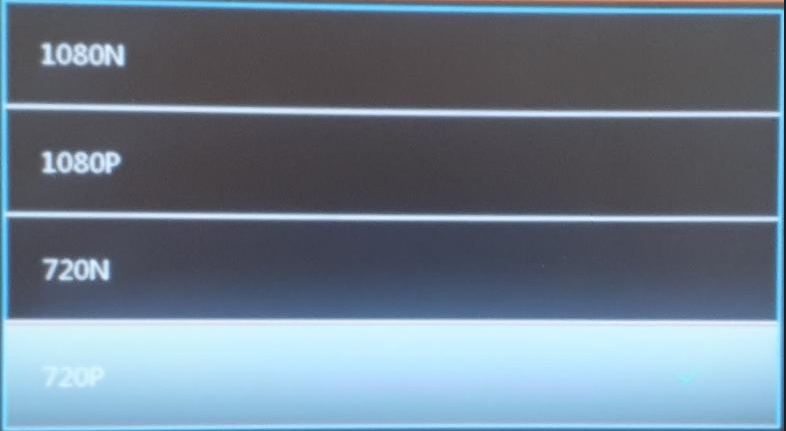

    • PAL or NTSC cameras supported (in the menu - after flashing the firmware)
  • voice control                     yes
    • "turn on screen"          "turn off screen"
    • "turn on audio"           "turn off audio"
    • "show front camera"     "show rear camera"
    • "show both cameras"   - It displays 4 split
• camera

  • view angle                       160° horizontally
  • water resistance               IP67
  • dimensions                      40 x 30 x 35 mm without stand
• video

  • resolution                        AHD 720p
  • compression                    H264
  • file                                  .MOV  (1, 3, 5 min)
• SD card support                       max. 256GB (not included)
• trigger wire                              3x trigger
  • CH2 green for parking camera
  • CH3 blue for side left
  • CH4 gray for side right
• multi-trigger                       yes 2-split display when plus is applied to CH3 and CH4 simultaneously
• default display                    4-split
• for vehicles                              with 12/24 V on-board voltage
• operating temperature              from -20 C to +70 C

Package content

• monitor                         1x
• camera                          4x
• cable 15m                     1x
• cable 5m                       2x
• cable 3m                       1x
• screws
