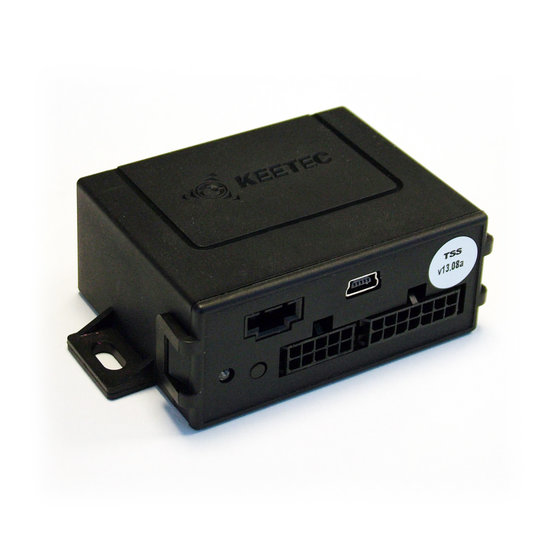

Can Bus module KEETEC M CAN

Universal CAN Bus Module KEETEC designed to obtain data from digital CAN BUS vehicle or convert analogue signal to digital data. By using the M CAN module you can find information about the state switched ignition, door, trunk, engine compartment, information about the unlock / lock the vehicle, the vehicle speed to 10 km / h and engine speed above 500 rev / min. Moreover, the M CAN module can send data for flashing with directional lights, lock/unlock the vehicle or release of trunk. The M CAN module significantly shorten installation time of car alarm or other device into the vehicle.

Outputs of M CAN module:

• Door contacts
• Contact bonnet
• Contact boot
• Ignition
• Lock original remote control from the vehicle
• Unlock original remote control from the vehicle
• Engine speed (output is active above 500 rev / min or programmable *)
• Vehicle speed (the output is active at up to 10 km / h or pulse)

* Programmable output engine speed

Inputs of M CAN module:

• Lock vehicle
• Unlock vehicle
• Unlock driver’s door
• Roll-down windows
• Roll-up windows
• Trunk open
• Hazard lights
