TFT MIRROR7 Monitor 7" 2ch AHD
|
TFT MIRROR7

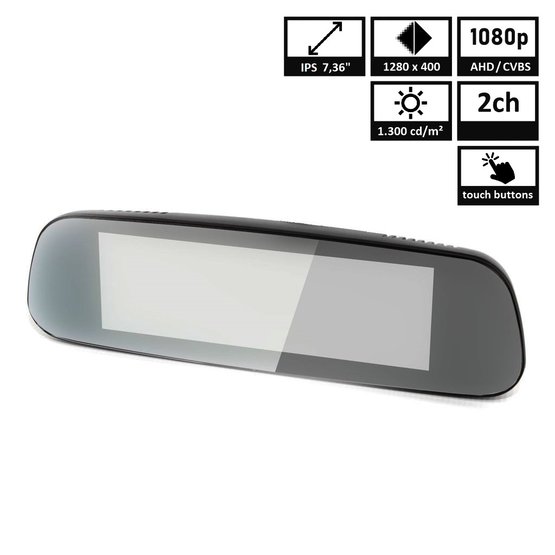

Universal monitor with IPS display of 7" integrated in the rearview mirror, to display the signal from 2 cameras. The mirror with holder is designed for vans without OEM rearview mirror (metal base must be glued to the glass) or for Ford, Hyundai/Kia, Nissan Toyota, Mazda, ... with same OEM base installed on the glass.
The monitor supports cameras with both CVBS analog and AHD signals.
Universal monitor with IPS display of 7" integrated in the rearview mirror, to display the signal from 2 cameras. The mirror with holder is designed for vans without OEM rearview mirror (metal base must be glued to the glass) or for Ford, Hyundai/Kia, Nissan Toyota, Mazda, ... with same OEM base installed on the glass.
The monitor supports cameras with both CVBS analog and AHD signals.
Features:
- Screen: IPS display 7.36" (18cm) in diagonal
- Resolution: 1280 x 400
- Supported signal: AHD 1080p / 720p, CVBS automatically
- TV Standard: PAL/NTSC automatically
- HD button at the bottom:
- vertical image shift - 4 levels
- stand-by mode - on/off
- touch buttons on the right side of the display:
- brightness (max 1300 cd / m2)
- parking lines - on/off (for ch2)
- ch1/ch2 - switching
- 2x trigger wire - trigger
- Power supply: 12V
- Dimensions: 26.5 x 7.5 x 4.2 cm (without holder)
- without speaker
- Power consumption: approx. 7W (0.3W standby)
- Operating temperature: -20°C to 70°C

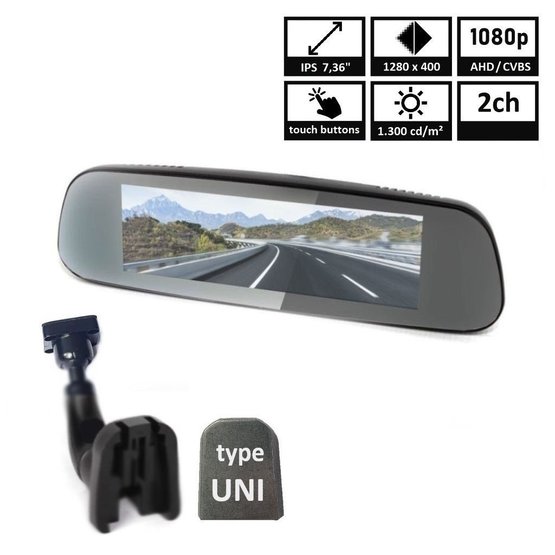

In the package:
monitor/mirror, mirror holder, metal base, wiring 2.5m
Parameters
| Brand of the car | Renault, Subaru, Suzuki, Škoda, Citroen, Dodge, Mitsubishi, Mazda, Honda, Chevrolet, Jeep, Peugeot, Nissan, Toyota, Chrysler, Hyundai, Ford, Kia, Isuzu |
|---|---|
| Model of the car | 5 II., 6 I., 6 II., Quashqai, Navara, C-Crosser, Pathfinder, Fiesta, L200, Focus, Outlander II., C-max |
| For cars | passenger, commercial |
| Use | UNI, OEM |
| Connectors | CVBS-RCA |
| Signal | AHD |
| Diagonal | 7.0" |
| Weight | 0.902 kg |
