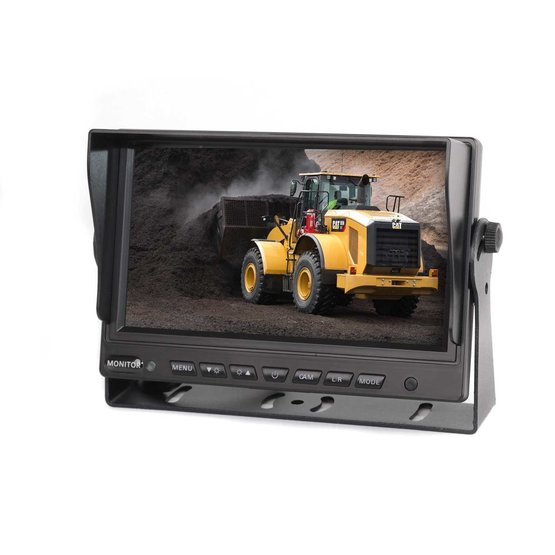

TFT7HD2 Monitor 7" AHD 2ch 2split 4PIN 12/24V

| TFT7HD2

AHD Monitor for vehicles with a diagonal of 7", up to two cameras to connect, allows simultaneous multiple display of two cameras, screw connectors M12 4PIN, resolution 1024x600, for vehicles with on-board voltage 12/24V, the ability to connect AHD cameras or analog cameras with M12 connectors, or RCA cinch (using reduction), 180° flip image function, ideal for connecting a rear view camera, and a side camera (or front or cargo camera).


AHD Monitor for vehicles with a diagonal of 7", up to two cameras to connect, allows simultaneous multiple display of two cameras, screw connectors M12 4PIN, resolution 1024x600, for vehicles with on-board voltage 12/24V, the ability to connect AHD cameras or analog cameras with M12 connectors, or RCA cinch (using reduction), 180° flip image function, ideal for connecting a rear view camera, and a side camera (or front or cargo camera).

Connect the trigger wire to the reversing lamp, the image from the parking camera will then be displayed in full screen automatically when reverse gear is engaged. (connect the reversing camera to channel no.2)

  • E-mark

Features

  • diagonal 7” TFT LCD 16:9
  • 1024 x 600 RGB resolution
  • AV input 2x 720p HD video input (also supports 1080p AHD)
  • function of simultaneous display of 2 cameras - 2SPLIT
  • display option: 1 camera, 2 cameras
  • trigger cable (1x) for parking camera
  • image orientation adjustment (left, right, up, down)
  • guide lines on / off Yes
  • speaker No
  • backlit buttons
  • 600cd / m2 display backlight
  • PAL / NTSC TV system - automatic, possible to connect and to display PAL and NTSC cameras at the same time
  • support for AHD, CVBS cameras
  • shock resistance min. 4G
  • DC power supply 12-24V
  • current consumption 340 mA at 12V DC; 230mA at 24C DC
  • working temperature from -25 to +75 °C
  • dimensions 178x 117x 23mm (without shield and stand)

Package contents: monitor, main cabling, remote control, U-stand, removable shield

Parameters

Use UNI
For cars commercial
Diagonal 7.0"
Signal AHD
Plugs M12
Weight 0.794 kg
