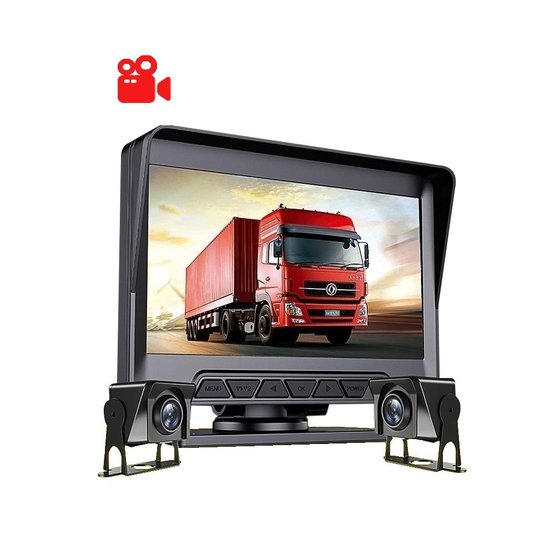

C20 Recording system, CCTV kit, 2x camera and monitor 7"

The system records automatically after turning the ignition on, while each channel (camera) is saved in a separate file. The cameras of small dimensions and thanks to the lens high aperture, It records a clear image in the dark even without IR leds. The system uses 720p AHD cameras, it is possible to add/use also AHD cameras of other brands. When installing on a truck/trailer, it is necessary to insert also the M12 flexi cable. The main functions can also be controlled by voice (turn on, turn off the screen, switch camera view).

Features

• monitor

  • display                            IPS
  • diagonal                          7"
  • speaker                           yes, built-in
  • brightness                       3 levels
  • microphone                      yes, bulit-in
  • parking lines                    on / off
  • mirror image                    on / off
  • display                            1ch, 2ch split
  • lock the recorded file        yes by button
  • time/date/number plate    yes, reg.no. on / off
  • dimensions                      182 x 120 x 27 mm without stand and shield
  • universal                        yes, other AHD cameras also supported

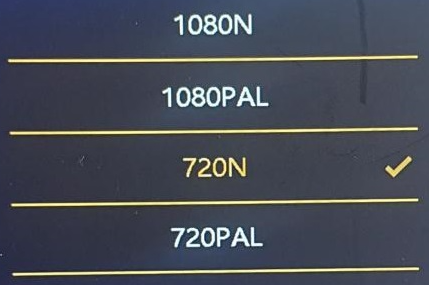

    • PAL or NTSC cameras supported (in the menu - after flashing the firmware)
  • voice control                     yes
    • "screen on"          "screen off"
    • "open recorder"     "close recorder"
    • "front video on"     "rear video on"
    • "check all"             - 2 split display
    • "lock video"

• camera

  • view angle                       160° horizontally
  • water resistance               IP67
  • dimensions                      40 x 30 x 35 mm without stand
• video

  • resolution                        AHD 720p
  • compression                    H264
  • file                                  .MOV  (1, 3, 5 min)
• SD card support                       max. 256GB (not included)
  • tested - 33 hours footage saved without overwriting (2 cameras connected, static image)
• trigger wire                              1x trigger
• for vehicles                              with 12/24 V on-board voltage
• operating temperature              from -20 C to +70 C

Package content

• monitor                         1x
• camera                          2x
• cable 15m                     1x
• cable 3m                       1x
• screws
