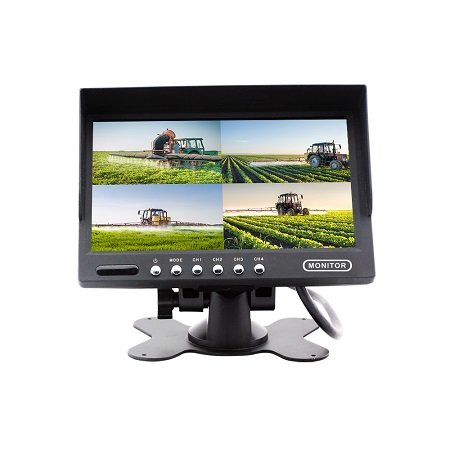

TFT7A4 Monitor 7" 4ch 4split 4PIN 12/24V
|
TFT7A4
Monitor 7" for vehicles, supporting up to four cameras to connect, simultaneous multiple view, M12 4PIN screw plugs, 800x480 resolution, for 12/24V on-board voltage, analogue cameras with M12 or RCA cinch plugs (using a reduction) compatible, 180° flip image function, ideal to use with rearview camera, side and front camera, or a camera in the cargo area.
Monitor 7" for vehicles, supporting up to four cameras to connect, simultaneous multiple view, M12 4PIN screw plugs, 800x480 resolution, for 12/24V on-board voltage, analogue cameras with M12 or RCA cinch plugs (using a reduction) compatible, 180° flip image function, ideal to use with rearview camera, side and front camera, or a camera in the cargo area.
TIP: Connect the dedicated trigger wire for each camera (side to turn signal, rear to reverse, ..) The fullscreen of a particular camera will show up automatically, when the driver needs to see it.
Features
- diagonal 7” TFT LCD 16:9
- 800 x 480 RGB resolution
- AV input 4x CVBS video input (RCA)
- function of simultaneous display of 4 cameras - 4SPLIT
- display options: 1 camera, 2 cameras, 3 cameras, 4 cameras
- trigger wire for each video input (4x)
- image orientation adjustment (left, right, up, down)
- on/off guide lines Yes
- speaker Yes
- 500cd / m2 display backlight
- TV system PAL/NTSC automatically
- shock resistance min. 4G
- DC power supply 12-24V
- working temperature from -20 to +70 °C
- dimensions 170x 115x 24mm (without shield and stand)
Package contents: 1x monitor, 1x cabling, remote control, stand, shield
Note. The monitor does not support HD cameras
Parameters
| Use | UNI |
|---|---|
| For cars | commercial |
| Diagonal | 7.0" |
| Signal | analog |
| Connectors | M12 |
| Weight | 0.858 kg |
