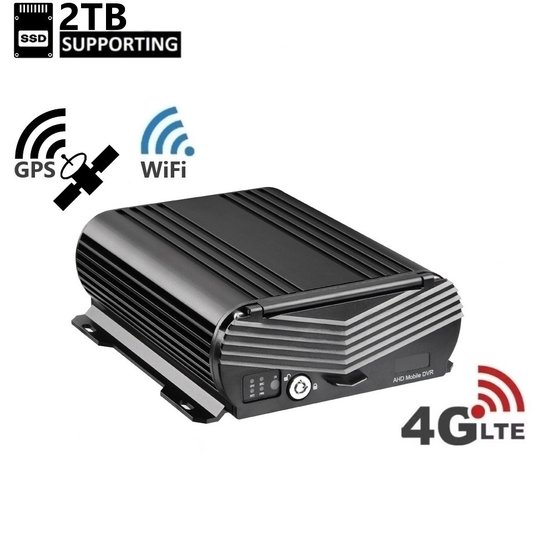

MDVR-GFW Video Recorder Mobile, WiFi, 4G, GPS, HDD 2TB

A monitor can be attached to the recorder, to provide the driver with visual support when reversing, turning, or when controlling special truck functions (dumping garbage, loading a container, etc.). In addition to commercial vehicles, the device can also be used for passenger vehicles, with hidden installation under the passenger seat and connecting miniature cameras. (BC UNI-WIDE, BC UNI-12, BC UNI, BC UNI-18.5 IR and the like).

Advantages:

• 8 channels, maintaining the video resolution of each channel
• high storage capacity
• mobile application, remote access
• driver visual support in around view area
• option for various AHD cameras to connect
• protection

.

.

Parameters / Features:

• Linux OS operating system, English language
• GUI interface, support USB mouse (also wireless USB)
• Security

  • Password: User password / Administrator password
  • Lockable box
• Video standard PAL / NTSC
• Video compression H.264
• Video resolution 1080N/720P/960H/D1/CIF

  • Every 2 channels can be set to a different video signal
• Ability to decode 8 channels 1080N in real time
• Split display 1, 2, 3, 4, 9 (MDVR remembers it even after power off)
• Audio compression G.726
• Recording search by channel and recording type
• Audio and video input 8 channel M12 connector
• Audio and video outputs

  • 1ch CVBS video output
  • 1ch VGA video output
  • 1ch HDMI video output
• Alarm 8x I/O alarm input, 1 alarm output
• Storage medium

  • Hard disk 2.5" slot, maximum support 2TB
  • 2x SD slot front, maximum 512GB
• Data transmision speed
  • SATA II → max. 3 Gb/s
  • SATA III → max. 6 Gb/s
• USB 2.0 slot rear - support mouse control
• RS485 serial port (for PTZ)
• GPS, BD GPS or Beidou positioning, GLONASS
• Support 4G/5G CDMA/EVDO/GPRS/WCDMA/FOD LTE/TDD LTE
• WIFI 802.11b/g/n, frequency 2.4GHz
• G-sensor
• Power / Output DC input: 8V-36V; DC output: 12V/2A
• Storage 1080N: 1.2G/h/channel 720P: 1G/h/channel 960H:750M/h/channelI
• Operating temperature -30℃ to 70℃
• Dimensions (L x W x H) 148 x 188 x 60mm
• Current consumption:

  • 3 mA standby mode
  • maximum 30W @12V 2.5A @24V 1.25A
• 3-wire connection (ignition, battery, ground)

Package content:

• 8 channels mobile recorder
• 3-wire power cable / connector
• GPS antenna, Wifi antenna, GSM 4G antenna
• video cable for connecting 2 cameras            4x
• remote control
• free wires connector for alarm inputs connection
• video adapter cable M12 female / RCA female
