Keetec BS 810 S parking assistant

| BS 810 S

Front and rear parking assistance system KEETEC with 8 silver sensors, 2 buzzers with volume adjustment.


Front and rear Park Assist system KEETEC with 8 silver sensors, 2 buzzers with volume adjustment. New control units allow to set the sensitivity of sensors, and also to set off delay of front sensors in two levels.

Technical parameters:

  • acoustic signalisation
  • buzzers with the switches allow to set the volume
  • sensors are mounted in the front and back bumper
  • when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • sensors sensitivity adjustable
  • off delay of the front sensors after releasing the brake pedal (8s or 20s)
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensor diameter 18,5mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • function Antihook - measuring shift +20 cm (reserve, drawing, frame, ...)
  • fast obstacle detection
  • automatic detection of damaged sensor
  • supply voltage: 12V DC
  • working power: <2.5 W
  • display range (front / rear): 0,3 ~ 1,0m / 0,3 - 1,5m

Package:

  • 8pcs of parking sensor

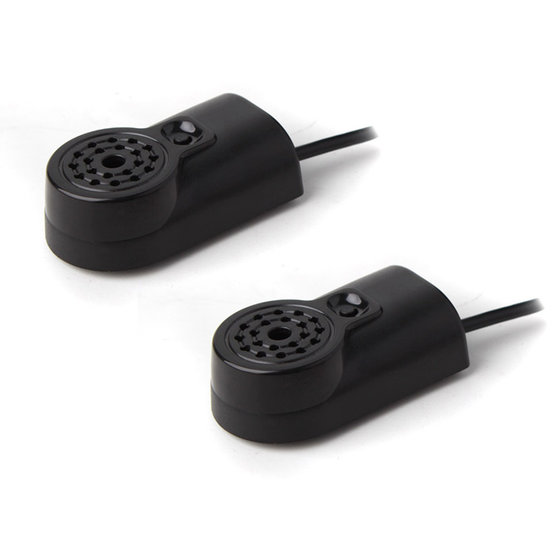

  • buzzer 2x
  • control unit 2x
  • wiring
  • drill
  • manual
  • warranty card

Parameters

Product type Rear & Front sensors
Display Without display
Manufacturer Keetec
Sensor type Basic
Sensors colour silver
Power Suply 12VDC
Weight 1.422 kg
