Parking sensors Steelmate PTS800V7

Front and rear Park Assist system STEELMATE with 8 sensors, 1 widescreen V7 LCD display mountable at bottom of rear view mirror. Anti-false alert technology. Intelligent detection, compatible with spare wheel.

System description:

• acoustic, voice and visual signalisation

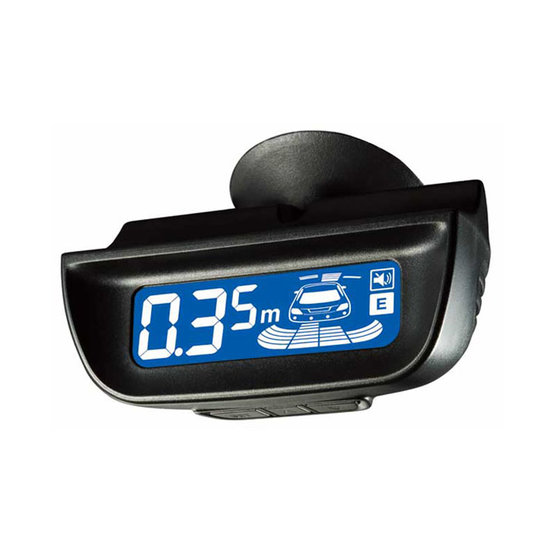

• LCD display V7
• sensors are mounted in the front and back bumper
• when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
• excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
• angle washers  0°, 4°, 10° included in the package
• sensors core diameter 14 mm
• mounting hole 18,8 mm
• sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
• function Antihook - measuring shift +20 cm (reserve, drawing, frame, ...)

Technical parameters:

• supply voltage: 12V DC
• detection range: 0.1 ~ 2.59m; 0,1 ~ 0,99m
• operating temperature: -40° ~ 80°
• buzzer: 50 ~ 70 db
• working power: <2.5 W
• display range: 0.3 ~ 2.59 m; 0,1 ~ 0,9m
• sensor diameter 18,5mm
• display dimension: 90 x 33 x 43 (mm)

Package:

• 8pcs of parking sensor
• LCD display V2
• control unit
• wiring
• drill
• manual
• warranty card
