Discontinued

Steelmate parking assistant, LCD, 8x silver sensor 16mm PTS810V7 BTI SILVER

| PTS810V7 BTI SILVER

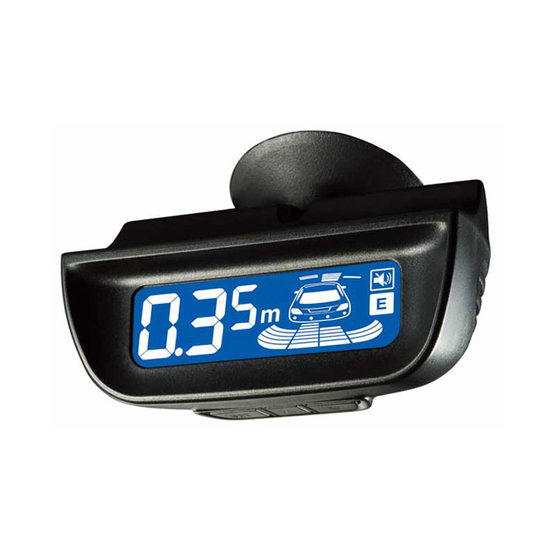

Parking assistant STEELMATE with 8 flush sensors in silver colour 16mm, with only one control unit, designed for installation in the front and rear bumper, with V7 LCD display with numeric value and graphic signalisation, display location on the windshield. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).

Discontinued

System Description:

acoustic, voice and visual alarm
sensors are mounted to the rear and front bumper
automatic detection of damage to sensors (selftest)
if the obstacle is at a distance of 30 cm from the vehicle, it will sound a continuous tone
Antihook function - scanning shift + 20 centimeters (spare wheel, frame ...)
sensitivity setting, in 2 levels
excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
installation hole 16 mm
sensors with 10 cm cable with waterproof connector which ensures easy replacement, if necessary
supply voltage: 12V DC
working power: <2.5W
cover range (front / rear): from 0.3 to 1 m / 0.3 to 1.5 meters

Contents:

parking sensors 8 pieces
display 1x
control unit 1x
cabling
drill
instruction manual
warranty card

Note: The control unit contains a 3 pin connector for connecting the display, an old display with 8 pin connector is not compatible

Parameters

Weight	1.558 kg
