Wireless parking sensors Steelmate PTS400Q1

| PTS400Q1

Rear parking assist system STEELMATE with wireless LED display Q1. Wireless technology, works up to 30 meters. New anti-false alarm patent.

PTS400Q1 parking assistant could be supplied with theese sensor types: white, silver, shiny, metal, INT (inner black 25mm), BTI white (inner white 16mm) , BTI silver (inner silver 16mm), BTI (inner black 16mm).


Rear parking system STEELMATE with wireless LED display Q1 working up to 30 meters. Suitable for mounting on the vehicles dashboard.

System Description:

  • acoustic and visual alarm

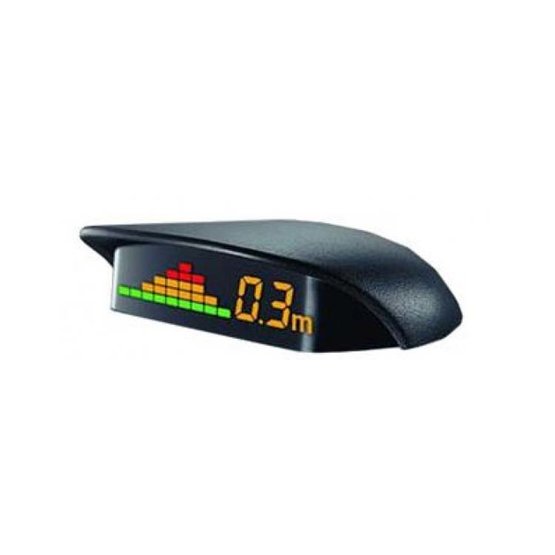

  • wireless LED display Q1
  • fast obstacle detection
  • automatic detection of damage sensors
  • when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • function Antihook - measuring shift +20 cm (reserve, drawing, frame, ...)

Technical parameters:

  • supply voltage: 12 (+/-3V) V DC
  • working power: <2.5 W
  • detection range: 0.3 ~ 1.79 m
  • operating temperature: -40 ° ~ 80 °
  • buzzer: 70 ~ 90 db
  • sensors: Ultrasonic 18.5mm


  • 4pcs parking sensor
  • wireless LED display Q1
  • control unit
  • wiring
  • drill
  • manual
  • warranty card


Manufacturer Steelmate
Sensors colour black matt
Display Wireless display, LED display
Number of sensors 4 sensors
Power Suply 12VDC
Weight 0.75 kg
